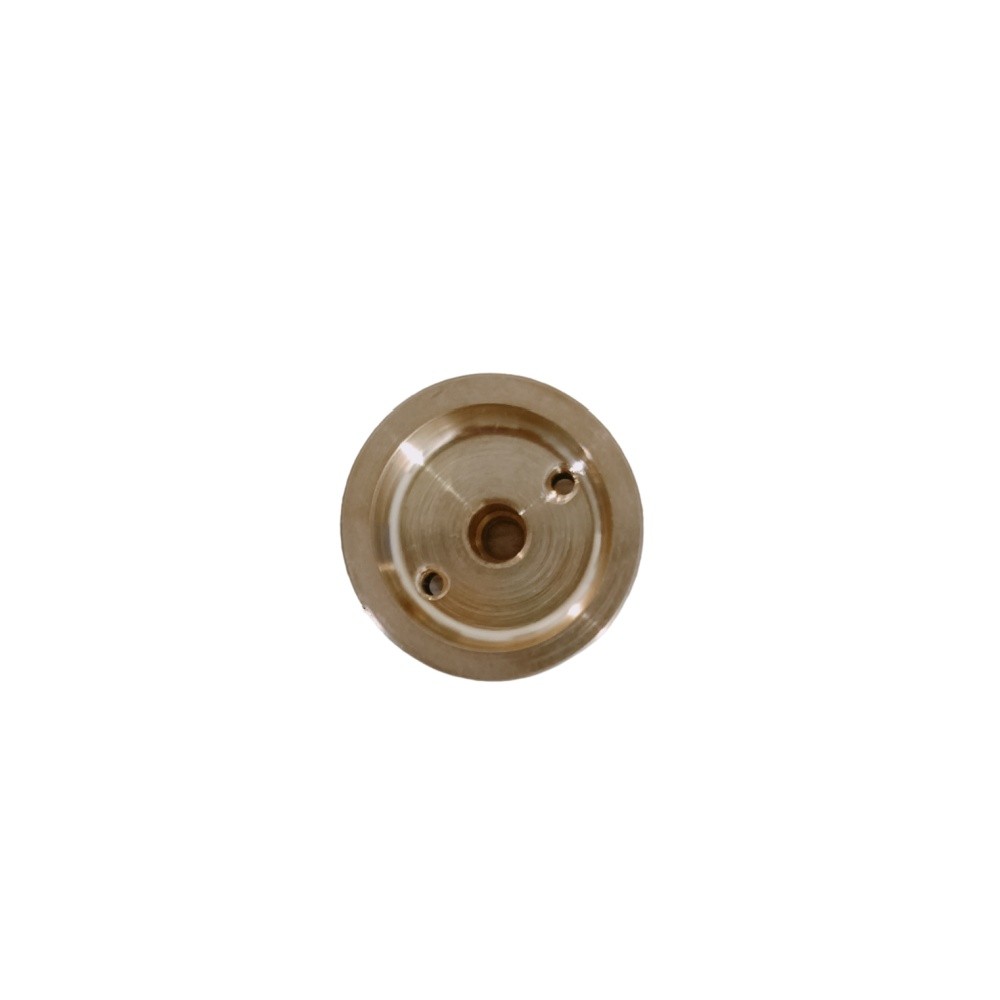

Product number: 1-12872 Product name: Seal Back-up Used for: 1-12864 90° Swivel Minor Repair Kit, 1/4 in. of 1-12863 90° Swivel Assembly, 1/4-in., Female to female
The 1-12872 Seal Back-up used for 1-12864 90° Swivel Minor Repair Kit, 1/4 in. of 1-12863 90° Swivel Assembly, 1/4-in., Female to female.
| Item No. | Part No. | Part Description | Qty. |
| 1 | 12868 | Nut | 1 |
| 2 | 12867 | Seal | 1 |
| 3 | 12872 | Seal Back-Up | 1 |
| 4 | 12871 | Housing, Seal Half | 1 |
| 5 | 12870 | Housing with Bearing | 1 |
| 6 | 12869 | Swivel Shaft | 1 |
| 7 | 12181 | Thrust Bearing | 1 |
| 8 | 12874 | Thrust Washer | 2 |
| 9 | 12875 | Wiper | 1 |
| 10 | 12662-008 | O-Ring | 1 |
| 11 | 11679-123 | O-Ring | 1 |

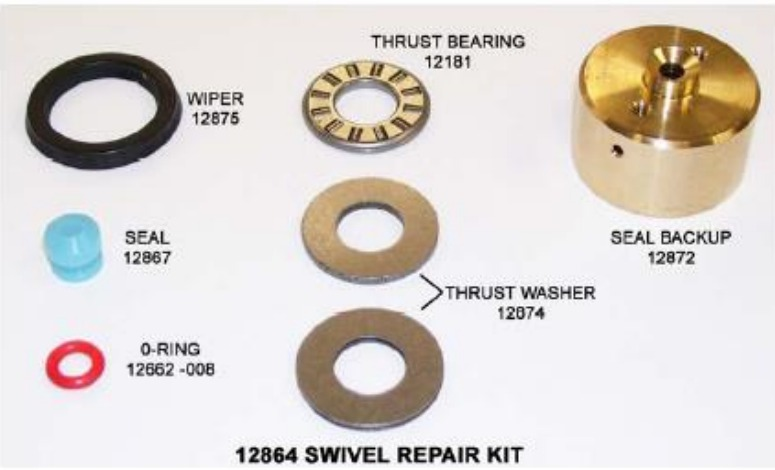

| Item No. | Part No. | Part Description | Qty. |
| 1 | 12867 | Seal | 1 |
| 2 | 12662-008 | O-Ring | 1 |
| 3 | 12872 | Seal Back-Up | 1 |
| 4 | 12875 | Wiper | 1 |
| 5 | 12181 | Thrust Bearing | 1 |
| 6 | 12874 | Thrust Washer | 2 |
| 7 | #4-40 x 1.25 SHCS | 2 |

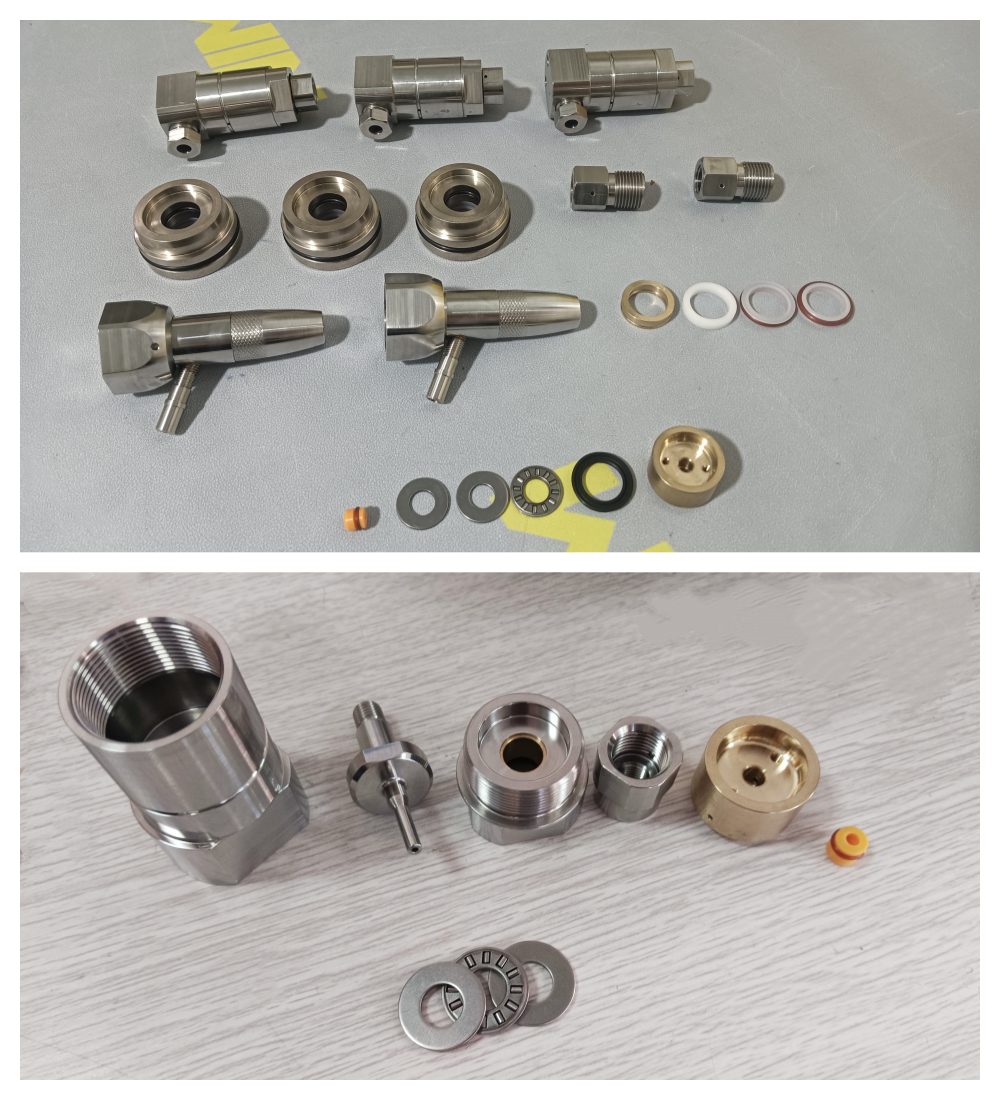

| Item | Description | Quantity |
|---|---|---|
| 1 | Swivel joint | 3 |
| 2 | Cutting head | 2 |
| 3 | Seal housing | 2 |
| 4 | Repair kit | 1 |
| 5 | HP filter screw | 2 |
| 6 | HP seal kit | 1 |
If you are interested in any waterjet parts, contact us please.
