Used for: R-esato waterjet cutting machine

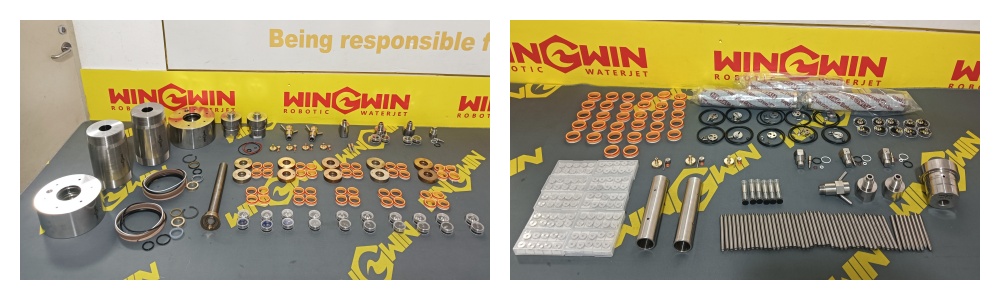

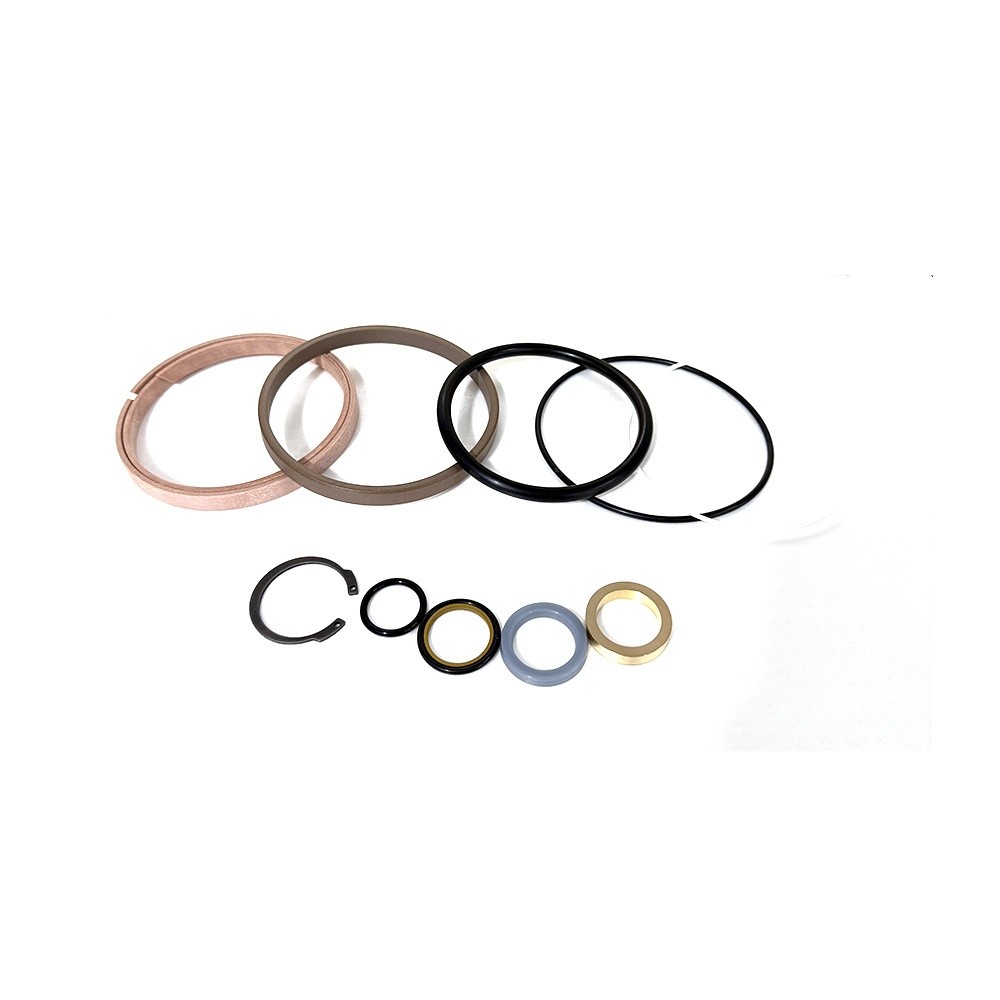

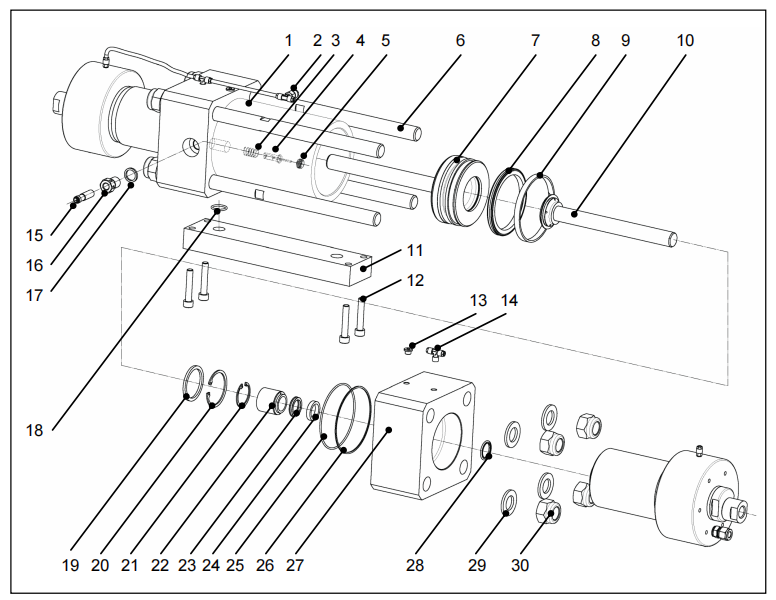

The RESATO Waterjet spare parts 1005009 Hydralic Seal Kit including the below parts marked yellow:
| NO. | QTY | Product name | IOP115-20-2 | A | B |
| 1 | 2 | Hydraulic cylinde | 1004146 | ||
| 2 | 1 | Nipple | 1003566 | ||
| 3 | 2 | Sprin | 1004206 | ||
| 4 | 2 | Initiato | 1004150 | ||
| 5 | 2 | Nut | 1004148 | ||
| 6 | 4 | Tie rod | 1003550 | ||
| 7 | 1 | Hydraulic piston | 1003551 | x | |
| 8 | 1 | Piston seal | 1003976 | x | x |
| 9 | 2 | ||||
| 10 | 2 | Plunger + piston thrust ring | 1005322 | ||
| 11 | 1 | Interface | 1003547 | ||
| 12 | 4 | Hexagon socket headcap screw | 1005323 | ||
| 13 | 2 | Stop | 1004527 | ||
| 14 | 3 | T-fitting | 1003559 | ||
| 15 | 2 | Sensor | 1003446 | ||
| 16 | 2 | Adapter | 1004149 | ||
| 17 | 2 | Sealing ring | 1003443 | ||
| 18 | 2 | O-ring | 1003419 | x | x |
| 19 | 2 | Fill ring | 1005317 | ||
| 20 | 2 | Retaining ring | 1004386 | ||
| 21 | 2 | Retaining ring | 1001742 | ||
| 22 | 2 | Bearing ring | 1003330 | ||
| 23 | 2 | Hydraulic seal | 1003426 | ||
| 24 | 2 | Backup ring | 1005004 | ||
| 25 | 2 | O-ring | 1003327 | ||
| 26 | 2 | Backup ring | 1002152 | ||
| 27 | 2 | Hydralic flange | 1004151 | ||
| 28 | 2 | Rod seal | 1003324 | ||
| 29 | 8 | Washer | 1003382 | ||
| 30 | 8 | Locknut | 1005324 | ||
| No. | IOP115-20-2 | ||||
| A | Hydraulic repair kit | 1006138 | |||
| B | Hydraulic seal kit | 1005009 | |||
Other parts of RESATO waterjet:
No. | Code | Description |
1 | 1003302 | HP filter element 40 micron |
2 | 1029990 | Seal kit B for cutting head body |
3 | Static seal | |
4 | 1004535 | Mixing chamber |
5 | 1004543 | Repair kit for the hydraulic bleed valve |
6 | 1044042 | Oil filter element |
7 | 1004326 | Bushing |
8 | 1004541 | Outlet check valve repair kit |
9 | Inlet check valve repair kit | |
10 | 1004240 | Tube 0.76 |
11 | 1004273 | Nozzle 0.25 |
12 | 1003433 | Gland |
13 | 1004154 | Valve body |
