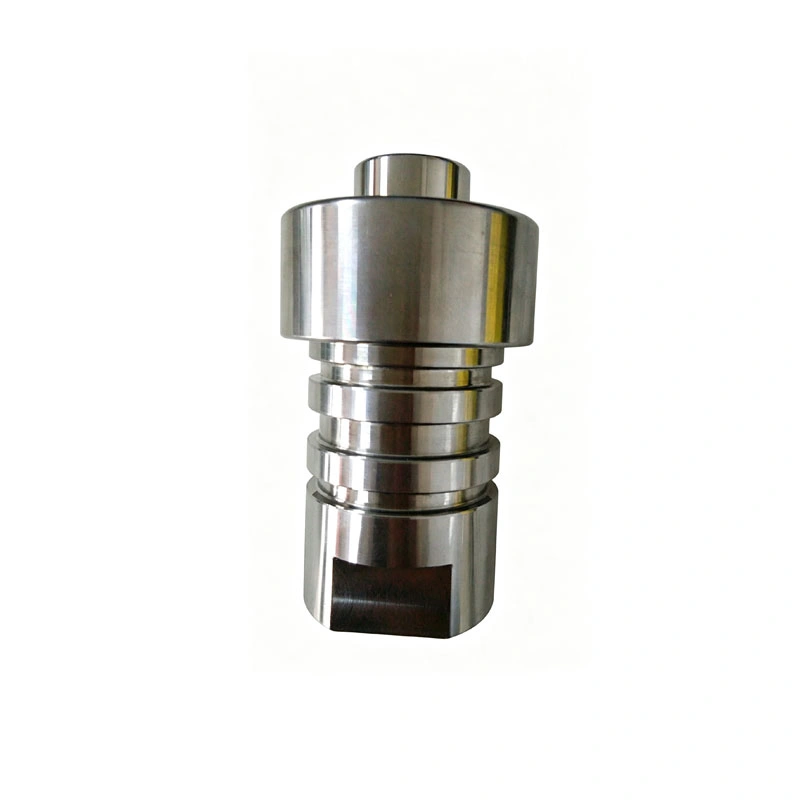

Product name: Check Valve Main Body 100009-1 Replaces: 004383-3|20458098|A-25-0005|H100009-1|T200-6035|004383-2
WIN-WIN WATERJETSUPPLIER is a manufacturer of waterjet cutting machines and parts. We offer parts, repair services, and technical support for various brands of waterjet cutting machines.
We have a large inventory of in-stock parts for FLOW and H2O waterjet equipment, and many parts are interchangeable between these two brands. The table below lists some of the interchangeable parts.
| General Component Statistics | ||||
| NO. | Used for | Product Name | H2O P/N | FLOW P/N |
| 1 | Intensifier | Ceramic Plunger / Ceramic Piston Plunger | 100013-1 | 010253-1 |
| 2 | Intensifier | High Pressure Cylinder | 190001-1 | 020592-1 |
| 3 | Intensifier | HP Seal Cartridge | 391094-1 | 040015-1 |
| 4 | Intensifier | Hydraulic Cylinder – Short Block | 190008-1 | 019975-1 |
| 5 | Intensifier | Hydraulic Cylinder – Long Block | 190008-2 | 011290-1 |
| 6 | Intensifier | LP Tie Rod – Short Block | 190017-1 | 011291-1 |
| 7 | Intensifier | HP Tie Rod | 190017-2 | 014589-1 |
| 8 | Intensifier | Coupling Nut / Tie Rod | 190017-4 | 014840-1 |
| 9 | Intensifier | Tie Rod / End Cap Nut | 190017-5 | 014597-1 |
| 10 | Intensifier | End Bell Assembly – Short Left | 391001-1-L | 020072-1 |
| 11 | Intensifier | End Bell Assembly – Short Right | 391001-1-R | 020074-1 |
| 12 | Intensifier | End Cap Assembly | 391004-1 | 014817-1 |
| 13 | Intensifier | Hi-Load Piston Assembly – Short | 391023-1 | 020080-1 |
| 14 | Intensifier | Hi-Load Piston Assembly – Long | 391023-2 | 011304-1 |
| 15 | Intensifier | Backup Sleeve / Filler Tube Assembly | 391500-1 | 020595-1 |
| 16 | Seal | Hydraulic Seal Kit – Hi-Load 94K | 392007-3 | 013157-1 |
| 17 | Check Valve | Check Valve Assembly | 391002-1 | 020071-1 |
| 18 | Check Valve | Check Valve Main Body | 190009-1 | 020077-1 |
| 19 | Check Valve | Check Valve Outlet Body | 190022-1 | 042101-1 |
| 20 | Check Valve | Inlet Poppet | 100058-1 | 015384-1 |
| 21 | Check Valve | Inlet Poppet Housing | 301009-1 | 010564-1 |
| 22 | Check Valve | Inlet Check Valve Repair Kit | 392003-3 | 014884-1 |
| 23 | Bleed Down | Hydraulic Bleed Down Valve Assembly | 391013-1 | 019309-1 |
| 24 | Bleed Down | Bleed Down Valve Repair Kit | 392008-1 | 015084-1 |
| 25 | Bleed Down | Bleed Down Valve Body | 190133-1 | 011742-1 |
| 26 | On/Off Valve | 94K Universal On/Off Valve Body | 190048-1 | 014554-1 |
| 27 | On/Off Valve | Poppet / Landing | 190059-1 | 014558-1 |
| 28 | On/Off Valve | Poppet | 190060-1 | 014557-1 |
| 29 | On/Off Valve | Poppet Seal | 190061-1 | 014556-1 |
| 30 | On/Off Valve | Seal Buttress | 190062-1 | 014555-1 |
| 31 | On/Off Valve | Air Actuator | 391006-1 | 014559-1 |
| 32 | On/Off Valve | On/Off Valve Repair Kit | 392001-1 | 014988-1 |
