Waterjet Genuine Parts from Austria

Genuine waterjet disassembled parts and cutting head parts for sale from Austria original pump

Product Description:

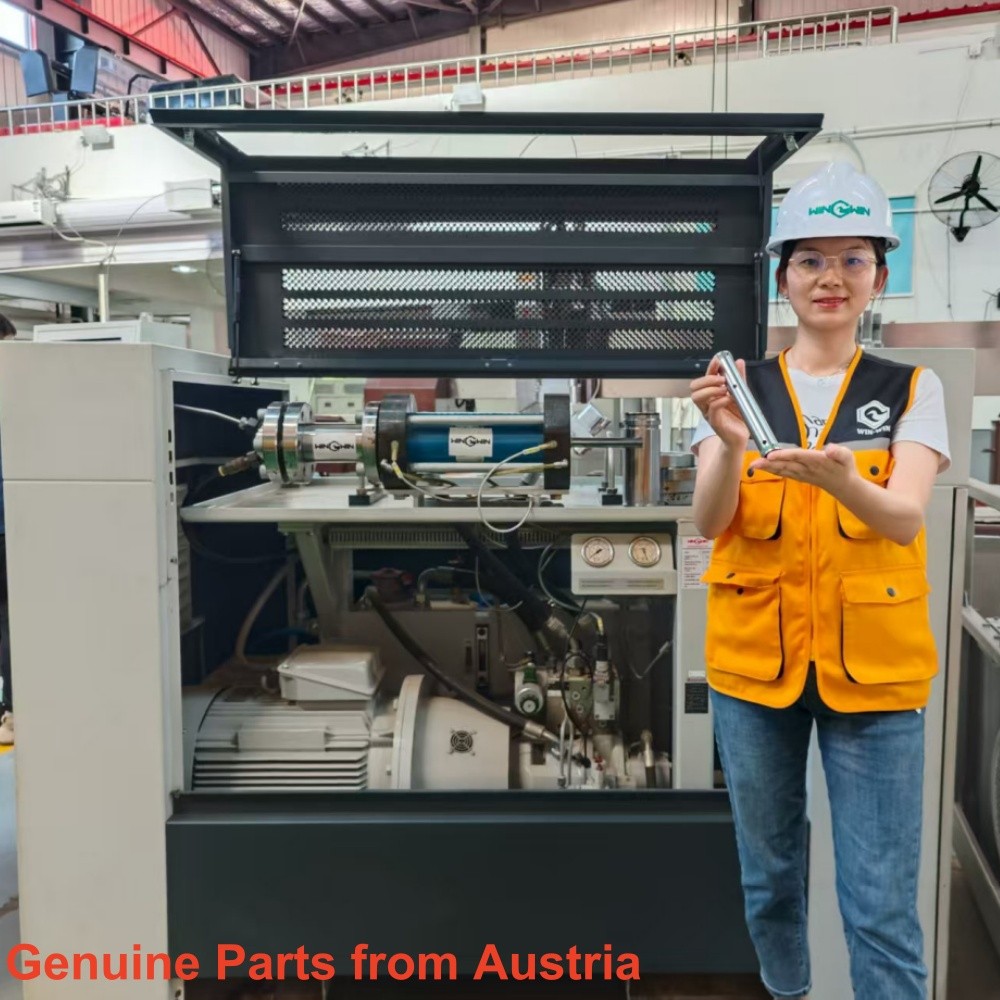

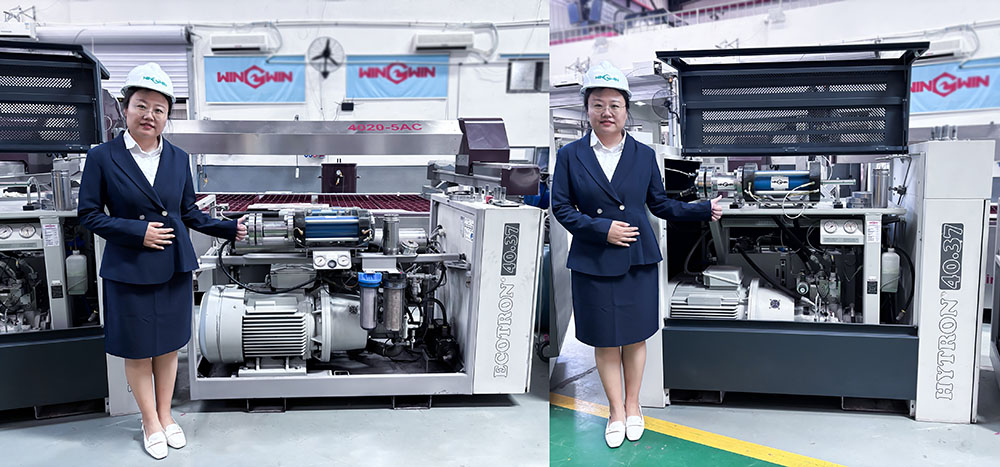

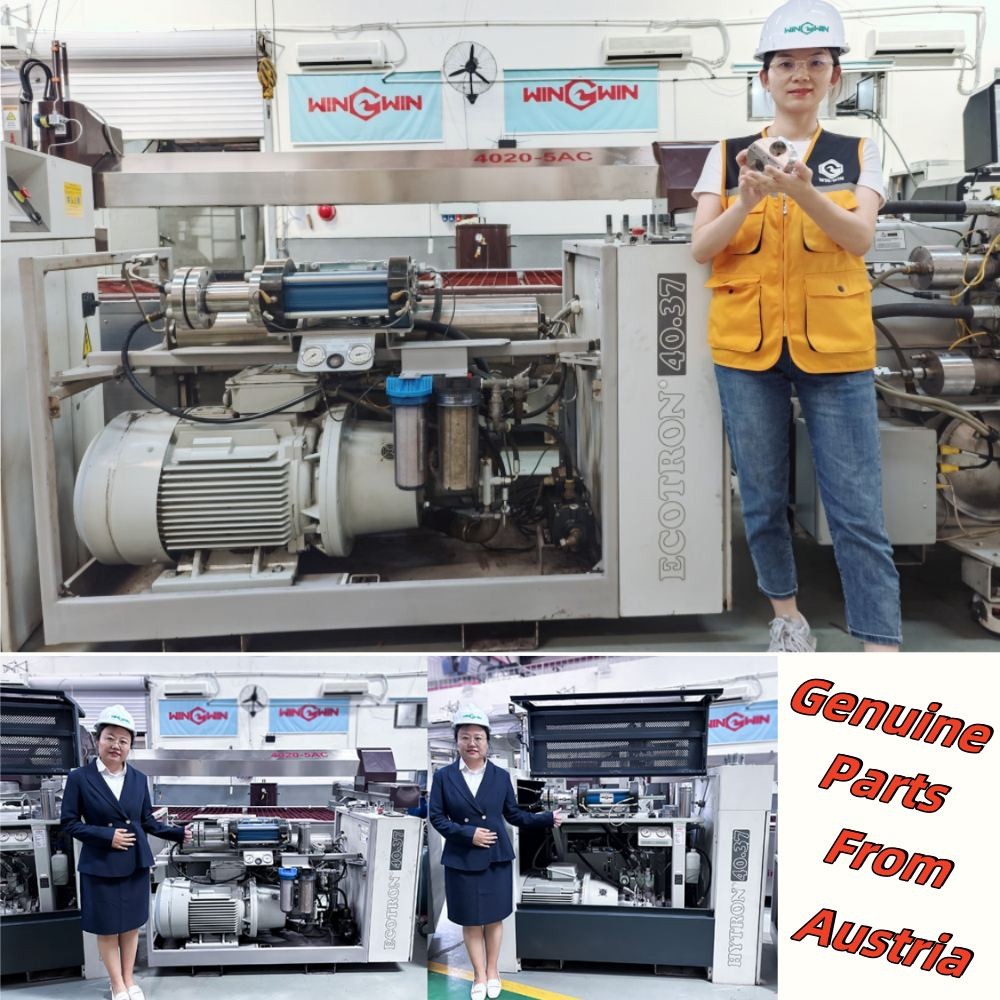

You can see a photo of our staff with two pumps from Austria in the picture below. You can also see our staff disassembling the two pumps

ECOTRON 40.37, ECOTRON 40.37 in the video below, as many customers want to buy Waterjet genuine parts.

The Kapfenberg, Austria waterjet pump models including ECOTRON 40.37, ECOTRON 40.30, HYTRON 35.11/35.13/40.19/40.30/40.37/40.55/40.75 etc.

Why choose the waterjet geunine parts?

The brand behind the high-pressure pumps in the video above has a history of over 40 years. Their strength and quality are undeniable, and they maintain high standards and rigorous requirements, making them one of Europe's largest high-pressure pump manufacturers. Therefore, the Waterjet genuine parts removed from their original pumps are also of the same high standard and quality, making them the preferred choice for waterjet cutting machine users.

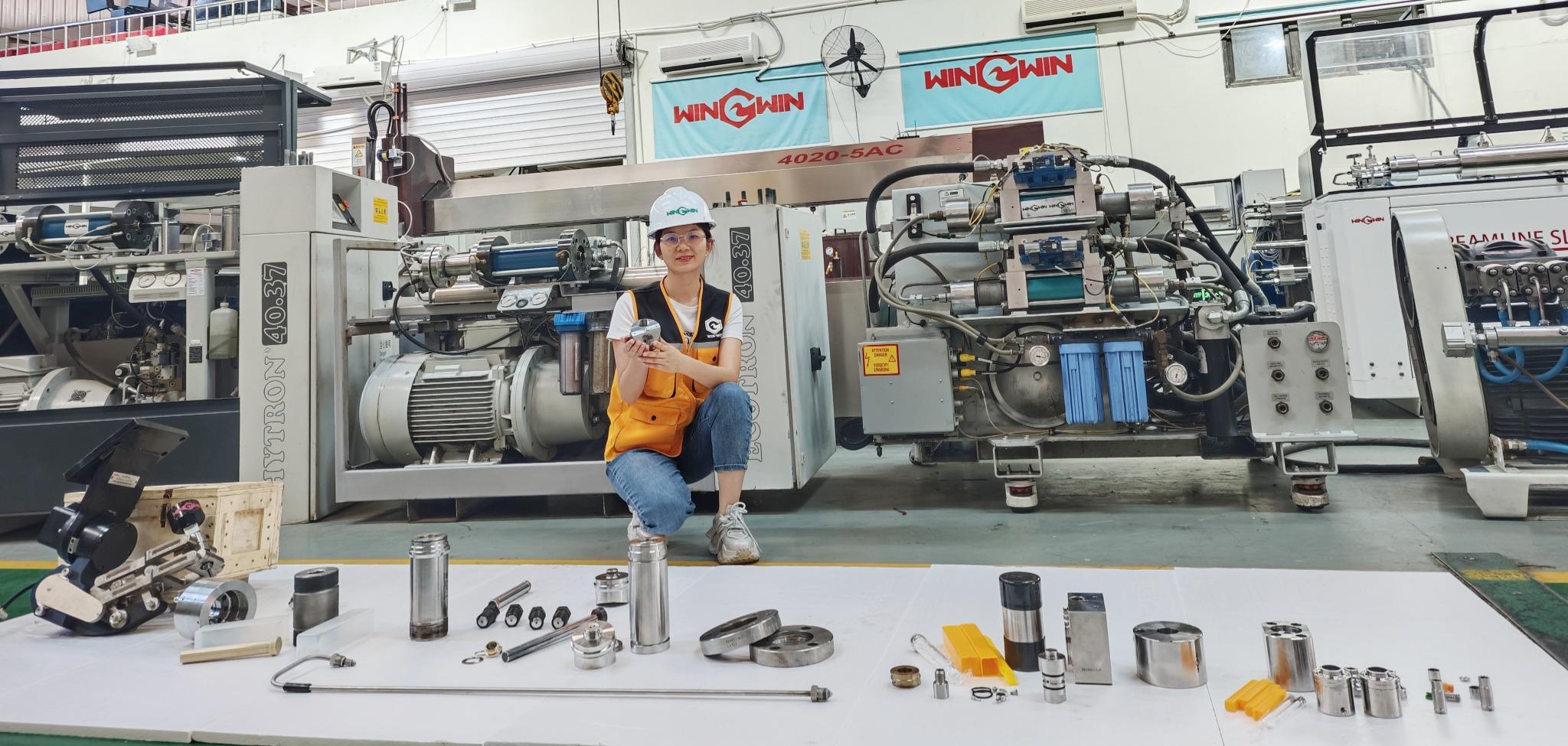

BFT BHDT original waterjet parts.jpg

The below is a Waterjet genuine parts list:

NO.	Description	Part number
1	Release valve	WJ055020/591
2	valve body	WJ055013/591
3	valve seat	WJ055003/168
4	valve stem	WJ070005/551
5	HP-gasket	WJ070009/150
6	O-ring 4,3x2,4	OR0043024/151
7	connection ring	WJ055009/025
8	cylinder	WJ055004/320
9	lower body	WJ055005/249
10	cover	WJ055006/249
11	piston	WJ055014/591
12	O-ring 49x3	OR0490030/151
13	back ring （No.12)	XS92/089
14	cup spring	315163080/255
15	safety ring	S0356x2/426
16	bushing	WJ055010/256
17	HP-con nection	WJ100037/152
18	9,5 gland nut 9,5	VDS095405/256
19	9,5 sleeve dia 9,5	VDR095405/261
20	adjusting nut	WJ070027/133
21	collet	WJ070028/256
22	mounting tool	WJ055011/256
23	mounting tool	WJ055012/256
24	union suction side	CP022043/844
25	valve seat	CP022046/593
26	lense	CP022042/593
27	valve insert	CP022045/775
28	ball dia. 6	K016/660
29	safety bolt	CP020052/220
30	union suction side	CP022043/844
31	valve seat	CP022046/593
32	lense	CP022042/593
33	valve insert	CP022045/775
34	ball dia. 6	K016/660
35	spring	XF97/220
36	safety bolt	CP020052/220
37	cylinder	CP022002/190
38	Kolben piston	CP022031/069
39	piston sealing	XK121/220
40	wear ring	XF56/220
41	plunger complete	CP022066/220
42	clamp ring	CP022057/075
43	retaining ring	HT022044/103
44	o-ring backring 97	034858/220
45	rod sealing	XST17/220
46	rod wear ring	XF29/220
47	cylinder head screw	D23M20360/046
48	connection flange	HT022008/172
49	connection flange	HT022009/172
50	thread ring	CP022021/593
51	piston	HT022004/473
52	mechanical sleeve	CP020030/562
53	guide bolt	CP020031/473
54	supporting ring	CP020032/562
55	helical spring	CP020033/255
56	helical spring	CP020034/255
57	snap ring	S24B20/103
58	initiator	XN5/220
59	plug	XST9/220
60	high pressure cylinder	CP022009/779
61	bearing bush	CP022010/527
62	sealing	CP022011/150
63	back ring	CP022012/780
64	quadring	9704521/220
65	distance bushing	CP022013/014
66	valve body	CP022040/591
67	back ring	CP022015/527
68	rod wear ring	XF35/220
69	split ring	CP022022/591
70	connection flange	CP022018/563
71	Flansch flange	CP022019/563
72	Flansch flange	CP022039/563
73	cylinder head screw	D23M20x65/046
74	pressure valve (union pressure side complete)	CP022047/844
75	suction valve (union suction side complete)	CP022109/844
76	swivel male elbow	MA160818/220
77	o-ring 75,92x1,78	OR0759017/151
78	Cylinder	CP022002/190
79	Piston	CP022031/069
80	Piston Sealing	XK121/220
81	Wear Ring	XF56/220
82	Plunger Complete	CP022004/220
83	Clamp Ring	CP022007/075
84	Retaining Ring	S0375x3/103
85	O-ring Backring 97	034858/220
86	Rod Sealing	XST17/220
87	Rod Wear Ring	XF29/220
88	Cylinder Head Screw	D23M20360/046
89	Connection Flange	CP022017/172
90	Connection Flange	CP022016/172
91	Thread Ring	CP022021/593
92	Piston	CP020029/473
93	Mechanical Sleeve	CP020030/562
94	Guide Bolt	CP020031/473
95		CP020032/562
96	Helical Spring	CP020033/255
97	Helical Spring	CP020034/255
98	Snap Ring	S24B20/103
99	Initiator	XN5/220
100	Plug	XST9/220
101	High Pressure Cylinder	CP022009/591
102	Bearing Bush	CP022010/527
103	Sealing	CP022011/150
104	Back Ring	CP022012/591
105	Quadring	9704521/220
106	Distance Bushing	CP022013/540
107	Vavle Body	CP022040/591
108	Back Ring	CP022015/527
109	Rod Wear Ring	XF35/220
110	Split Ring	CP022022/591
111	Flange	CP022018/563
112	Flange	CP022019/563
113	Flange	CP022039/563
114	Cylinder Head Screw	D23M20x65/046
115	Pressure Valve	CP022029/153
116	Suction Valve	CP022030/153
117	Tube Nipple	570000065/220
118	Sealing Ring	DV10/220
119	O-Ring 75.92x1.78	OR0759017/151
120	Valve stem mono	5200542
121	Actuator	1203454
122	O-ring 4,3x2,4	4100175
123	Pressure screw	4100181
124	HP-sealing	4100577
125	Pressure ring	4100771
126	Pressure ring	4100867
127	Pressure screw	4101412
128	threaded pin M6x6	4101541
129	Face pin wrench cranked	4204701
130	pressure spring	4204718
131	actuator Mounting tool pneum.	4204998
132	Mounting tool HP sealing	4205348
133	connection ring	5102069
134	Nozzle holder	5102112
135	Valve seat	5200316
136	Collimation pipe	5200321
137	Counter part
138	valve housing
139	Basic body	5102105
140	R1/8"-6mm/ Adapter	1200431
141	Sealing NW12	4100231
142	clamping nut	4101573
143	Collet	4101574
144	Sealing NW6	4100427
145	Sealing NW14	4100941
146	HM-Bushing ø11,5mm	4100692
147	hexagon socket screw M4 x 10	4101281
148	Valve Body-BFT UV
149	gland nut V 14.3	VDS143404_256
150	Collimation Pipe	WJ-75-008
151	sleeve V 14.3	VDR143404_261
152	1820Q
153	HP sealing	WJ070009_150
154	O-Ring 4.3 x 2.4
155	Valve Stem mono	WJ-75-0022
156	Pressure Spring 4204718
157	Valve Seat	WJ-75-0014
158	Counter Part	WJ-75-0021
159	nozzle support	WJ070059_153
160	valve body	WJ070061_591
161	cylinder	WJ070062_338
162	lid	WJ070063_657
163	guide bushing	WJ070064_327
164	piston	WJ070065_338
165	support	WJ070066_527
166	connection ring	WJ070067_365
167	collimation tube	WJ070068_593
168	thread pin	GB_FASTENER_SCREWS _HSCP M4X6-N
169	adjusting nut	WJ0070027_133
170	collet	WJ070028_256
171	O-ring	Oring 70 x 2
172	HP seal assembly	WJ070005_551
173		O-Ring 4.3 x 2.4
174		WJ070009_150
175	O-ring	Oring 14x2
176	absorbtion disc	SB229025_220
177	valve seat	WJ070003_168 WJ070283/591
178		1_8
179	Disc spring	560285150_255
180	shim	28040050_220
181		8060050_220
182		(M26x1.5) VDR143404_261
183	sleeve	VDS143404_256
184	guide bush	WJ070008_527
185	nozzle support	WJ070059_153
186	stem screw	WJ070070_365
187		GB_FASTENER_SCREWS _HSFP M6X6-N
188		1817 CT
189		Abdeckkappe XA..
190	sleeve	VDR064406_261
191	WJ070024_025	Valve Body
192	WJ070003_168	Valve seat
193	WJ070004_590	Inlet lens ring
194	WJ070008_527	Guide bushing
195	WJ070005_551	Valve stem
196	WJ070006_168	gasket support
197	WJ070007_527	support
198	WJ070009_150	HP-SEALING
199	O-Ring 4.3 x 2.4	OR0043024/151
200	WJ070029_025	Stem
201	WJ070028_256	Collet
202	WJ0070027_133	Adjusting nut
203	WJ070016_249	Bottom
204	O-Ring 65 x 3	OR0650030/151
205	O-Ring 9.5 x 3	OR0095030/151
206	WJ070015_320	Cylinder
207	RING_RRH 72
208	WJ070014_004	thrust piece
209	WJ070033_025	Connection ring
210	HSFP M6X8-N
211	WJ070018_249	Piston
212	20320050_220	shim ring
213	45x22.4x1.25	Cup Spring
214	O-Ring 7.5 x 2.5	OR0075025/151
215	M8X1.0-N
216	WJ070025_593	Collimation tube
217	VDS143401_256	Gland Nut
218	WJ070032_153	Nozzle Support
219	WJ070031_249	Cover
220	WJ070020_004	Adjusting Screw
221	WJ100026_256	Counter Nut
222	XA18_220	cover cap
223	DR070001_220	Sealing Ring 71573.9
224	AS013001_220	Scrupper Ring
225	VDS064401_256.SLDDR W	Gland Nut
226	VDR064401_261	Sleeve

If there is anything else you need, please leave us a message. We will contact you asap.
