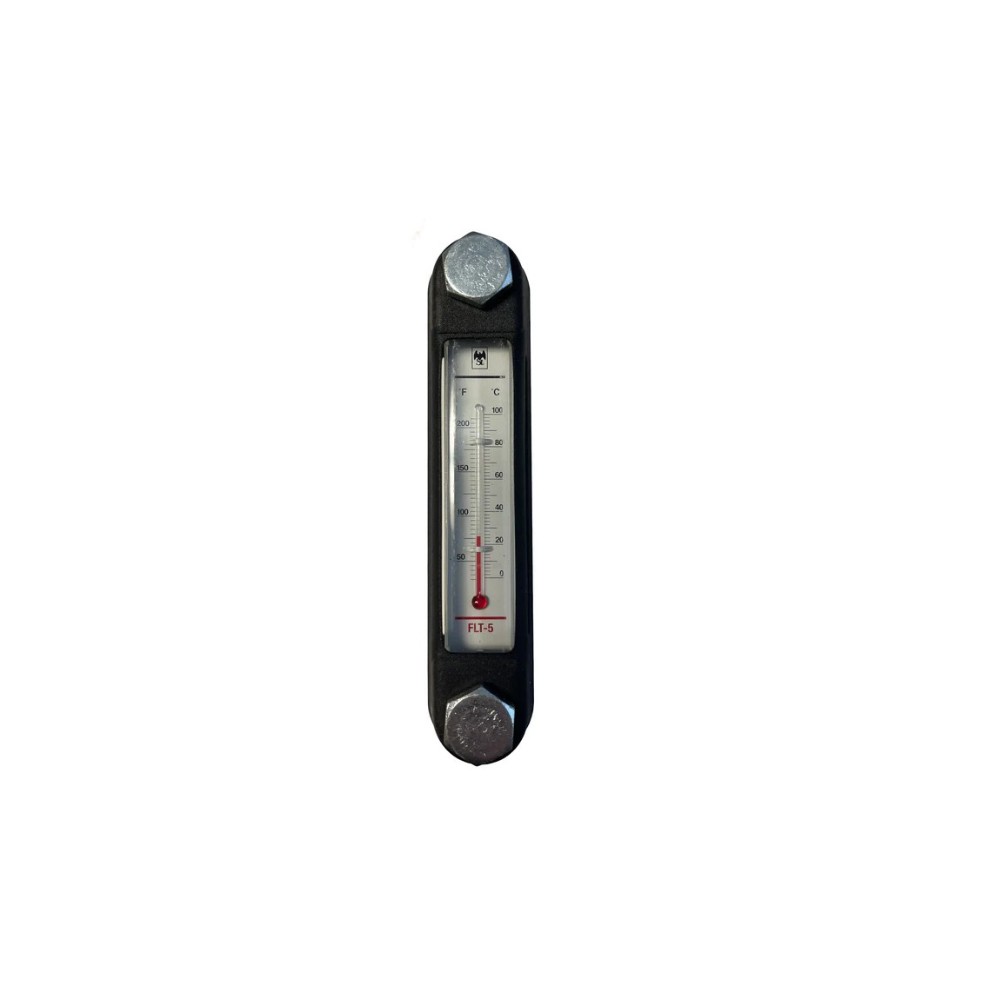

20451474 Level/Temperature Gauge

For STREAMLINE SL-V E50 / SL-IV / NEOLINE WATERJET INTENSIFIER PUMP

Product Description:

kmt waterjet parts water jet spare parts.jpg

Spare Parts List of Reservoir Assembly 80087802

Item	Part Number	Description
1	20451474	Level/Temperature Gauge
2	80086358	Reservoir Weldment
3	80087794	Reservoir Lid
4	20423326	Ball Valve, 2-Way
5	05025176	Plug, ORB, .50
6	10116713	Hex Head Screw, 1/2-13 x 1-1/2
7	05057542	Coupling, ORB, .75 x .75
8	10170686	Lock Washer, .50
9	05049697	Hydraulic Filter Head W/Gauge
10	05071063	Tee, JIC/ORB, .75 x .75
11	05092739	Air Breather
12	05049689	Oil Filter
13	05050026	Temperature/Level Switch
14	10069763	Flat Washer, .50
15	05069976	Cap, JIC, .75
16	05079371	Adapter, BSPP/JIC, .75 x .75
17	10091858	Bulb, Well
18	10142644	Adapter, JIC/ORB, .25 x .25
19	80087687	Diffuser, Return Line
20	05145958	Heat Exchanger, Water/Oil
21	05050331	Adapter, JIC/ORB, .75 x .63
22	80087810	Gasket, Reservoir
23	05073150	Adapter, JIC/ORB, .75 x .63
24	10079713	Hose Barb, .50 x .50
25	95830766	Lock Washer, .31
26	10070191	Hex Nut, M8 x 1.25 MM
