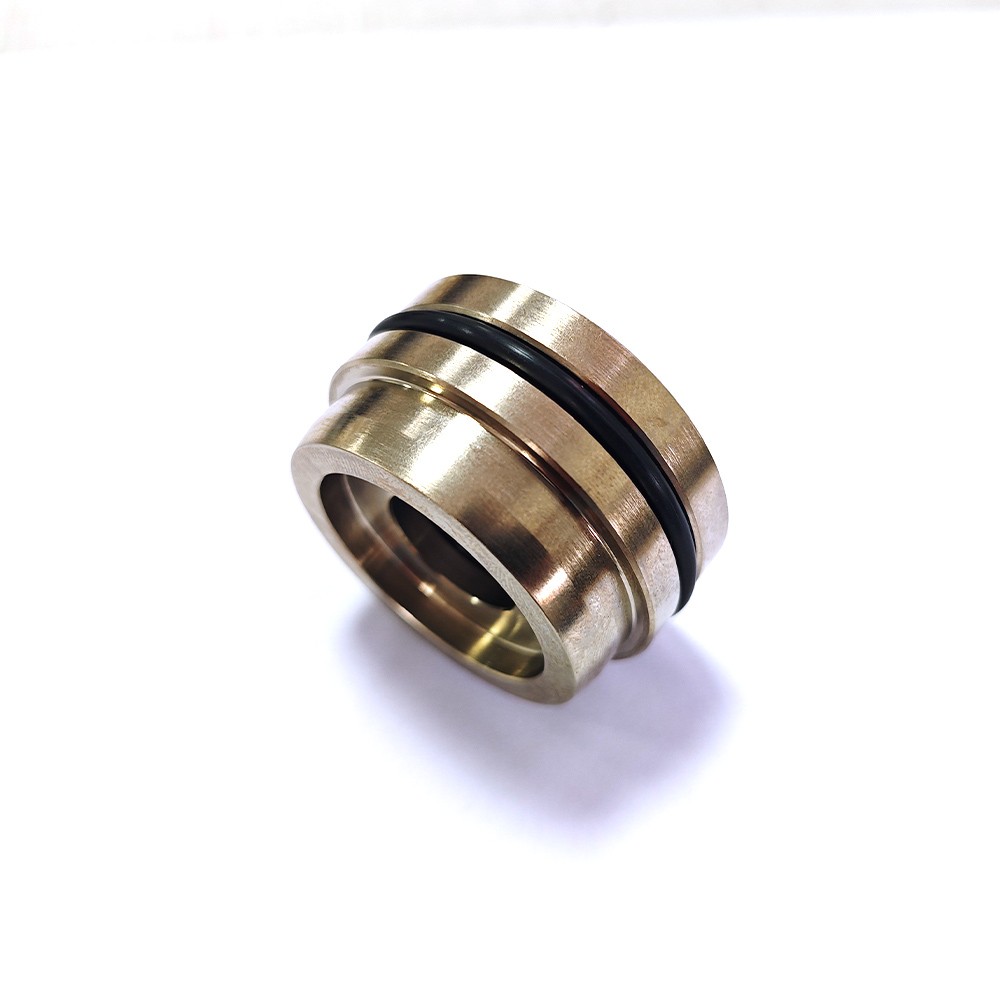

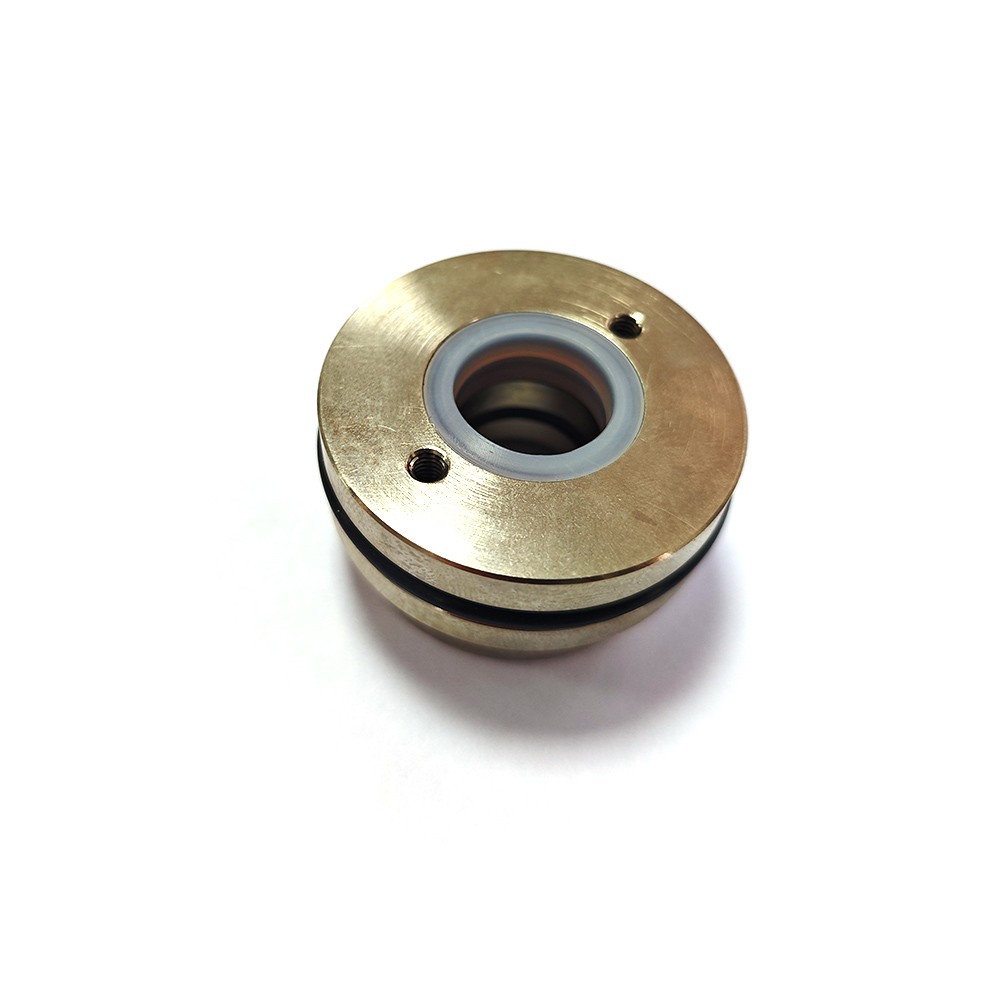

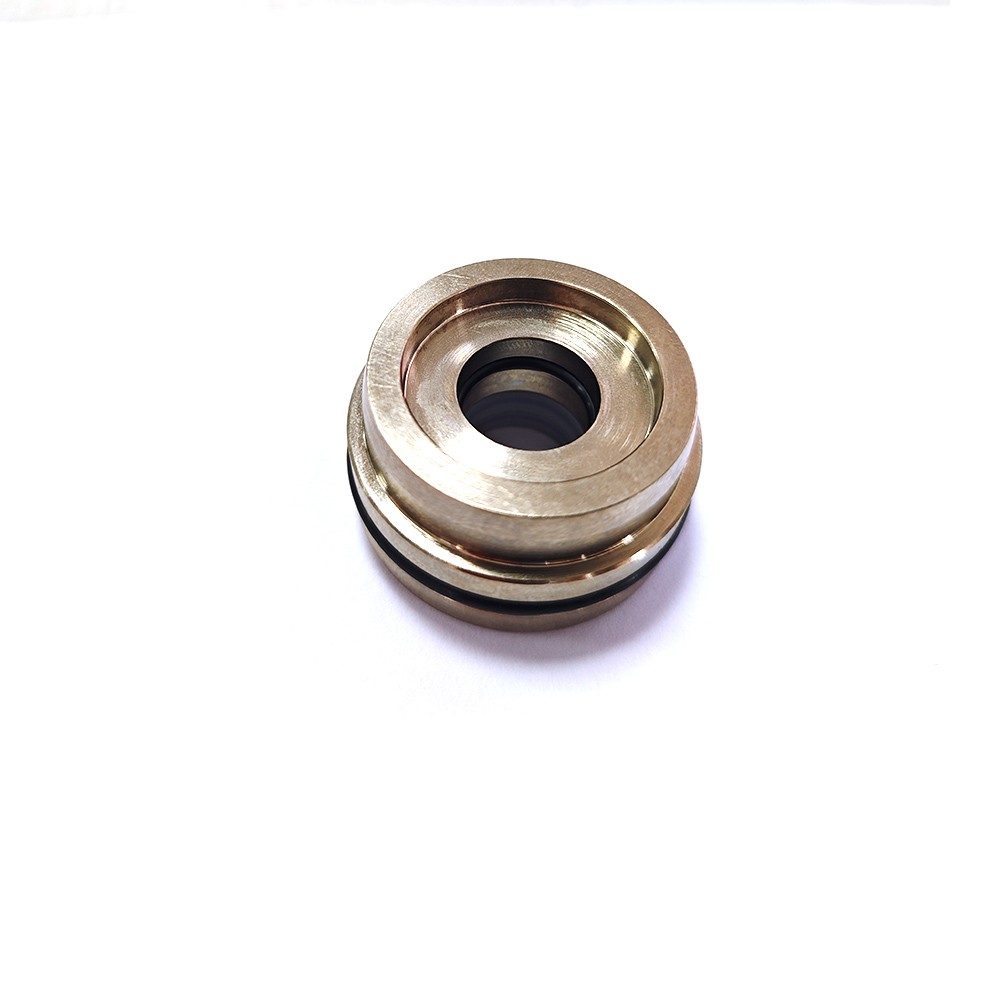

SP4-45-175 Seal Housing, 500-5-0049 o-ring, 500-5-0089 o-ring, wiper Seal SP1042. Used for: Techni Waterjet
The below parts including: SP4-45-175 Seal Housing, 500-5-0049 o-ring, 500-5-0089 o-ring, wiper Seal SP1042.
| ITEM NO. | DESCRIPTION | PART NUMBER | QTY. |
| 1 | Clamp ring | SP4-50 | 1 |
| 2 | M12x1.25x40 SHCS BLK | 110-1-1240 | 12 |
| 3 | Plunger | SP-46-3 | 1 |
| 4 | Internal Circlip | 501-1-0010 | 1 |
| 5 | O-ring | 500-5-0049 | 2 |
| 6 | O-ring | 500-5-0089 | 1 |
| 7 | Seal Housing | SP4-45-175 | 1 |
| 8 | Wiper Seal | SP1042 | 2 |
| 9 | Guide Bush | SP4-46-175 | 1 |
| 10 | M6 x 10 SHCS Black | 108-1-0610 | 1 |
| 11 | HP Seal Kit | SP1060 | 1 |
| 12 | Cylinder Liner | SP4-69-175 | 1 |
| 13 | Cylinder Body | SP-49-13 | 1 |
| 14 | Check Valve Housing | SP-72-7 | 1 |
| 15 | LP Check Valve Spring | 500-12-0040 | 1 |
| 16 | Check Valve Poppet | SP-73-2 | 1 |
| 17 | Sealing Head | SP-71-9 | 1 |
| 18 | O-Ring- BS033 | 500-5-0042 | 2 |
| 19 | Cylinder Retaining Sleeve | SP2-70-5 | 1 |
| 20 | Valve Seat | 500-20-0111 | 1 |
| 21 | Outlet Poppet | 500-20-0113 | 1 |
| 22 | Spring | 500-20-0112 | 1 |
| 23 | Check valve outer body | 500-20-0100 | 1 |
| 24 | O-ring | 500-5-0111 | 1 |
| 25 | End Cap Insert | SP4-125 | 1 |
| 26 | Clamp | SP4-126 | 3 |
| 27 | M6 x 12 SHCS Black | 108-1-0612 | 3 |
| NA | Collar | 10078715 | 1 |

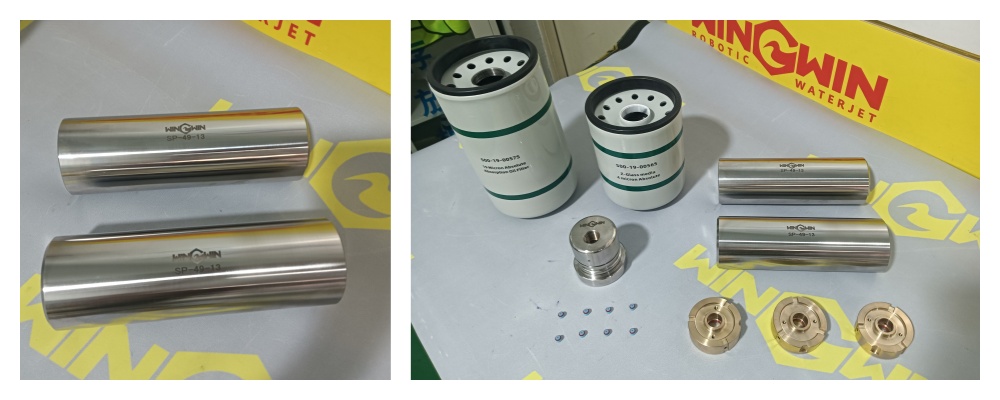

The above pictures show the following parts:
SP-49-13, cylinder body
50019-0057S, 19 micron absolute absorption oil filter
500-19-0056S, Z-glass media 4 micron absolute

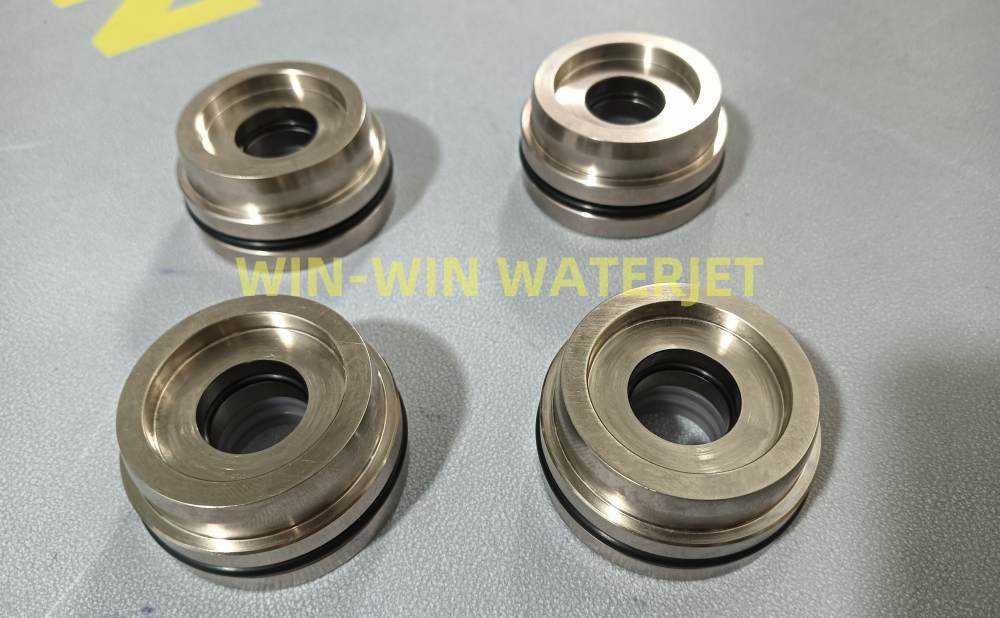

SP4-45-175, Seal Housing
SP4-46-175, Guide bush
SP-71-9, SP-71-2, Check valve body
